Overview
CATEGORY
Series 3
ENGINE
TYM T1700N6
HORSEPOWER
24
TRANSMISSION
HST or Synchromesh
# OF sPEEDS
3025R: F12 x R12
3025H: 3-Range
rEAR HITCH CAPACITY
3307 lb
TYPE
Compact
Quick Specs: Engine Manufacturer: TYM T1700N6 Engine Power: 24
Transmission: HST Rated Engine Speed: 2100 rpm
No. of Speeds: 3025R: F12 x F12 | 3025H: 3-Range
Hitch Lift Capacity: 3307 lb PTO Rear: 540 rpm
Fuel Tank: 33 L Hyrdaulic Flow: 11.5 gpm | 43.5 L/min PTO: Independent
Tire Choices: Ag, Turf or Industrial
A compact tractor robust enough to take on challenges of all sizes
The T3025 tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
Features
Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.

Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor’s load conditions.

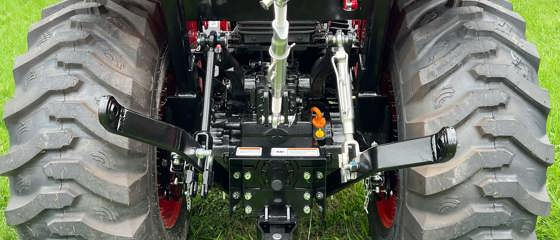

Lift more
Don’t let the size fool you. The T3025 ROPS offers 3,307lb of hitch lift capacity of and 2,200lb of bucket lift capacity.

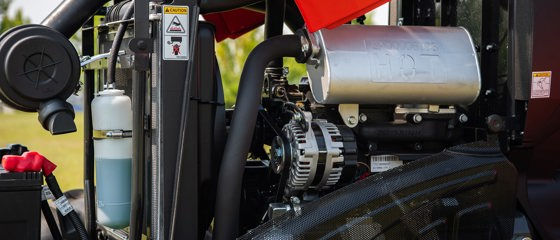

TYM power
Our TYM diesel is not just smooth, quiet and Tier 4 Certified. It puts out 24 engine hp and 21 PTO hp. Plus it’s covered by our 6-year powertrain warranty.

Simple PTO
The Power Take Off (PTO) switch is designed to engage and disengage easily. This will help you with smoother operation and less jerking when using attachments.

Control
The ergonomic joy-stick allows for better control for multiple functions, reducing muscle strain during long hours in the field.
