Overview
CATEGORY
Series 6
ENGINE
Turbo Charger
HORSEPOWER
111
TRANSMISSION
Power shuttle & Hi-Lo shift
# OF sPEEDS
F32 x R32
rEAR HITCH CAPACITY
6860 lb
TYPE
Utility
Quick Specs:
Engine Manufacturer: Doosan Infracore D34P
Engine Power: 111
Transmission: Power Shuttle & Hi-Lo Shift
Rated Engine Speed: 2300 rpm
No. of Speeds: F32 x R32
Hitch Lift Capacity: 6860 lb
PTO Rear: 540/750/1000 rpm
Fuel Tank: 110 (DEF 20) L
Hydraulic Flow: 21.3 gpm | 80.2 L/min
PTO: Independent
Tire Choices: Agricultural
A robust utility tractor designed to take on your biggest challenges

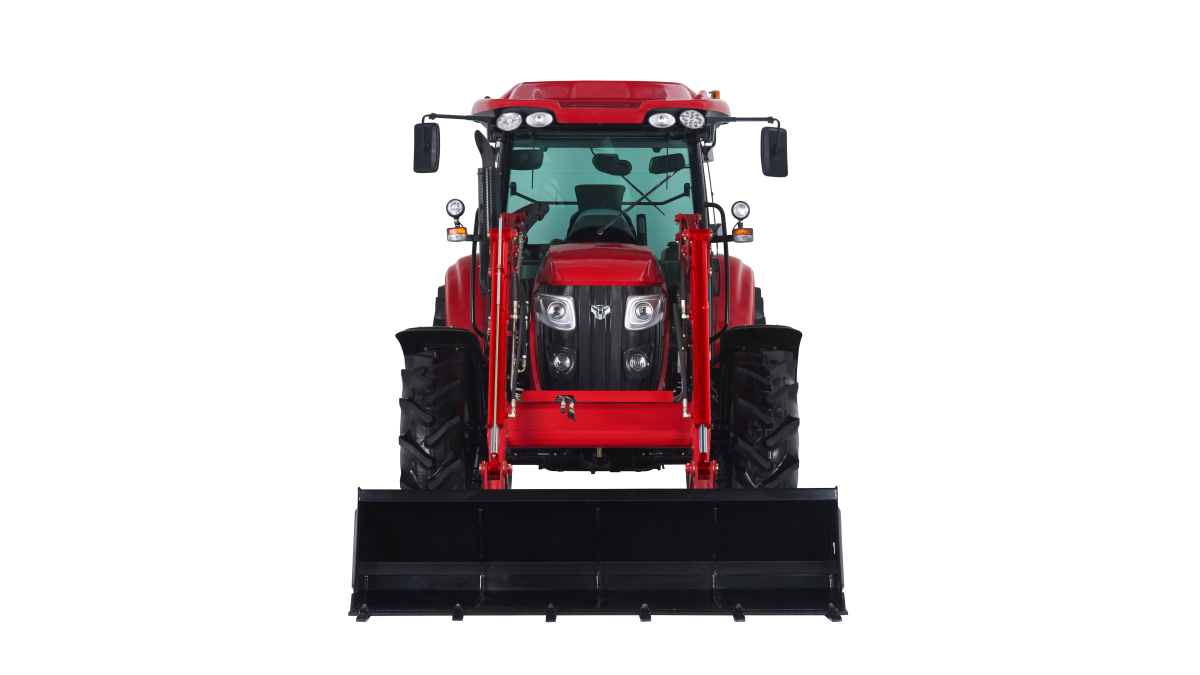

Take your projects to the next level and bring your vision to life with the T1104. This utility tractor is designed to tackle the toughest of jobs, ensuring maximized productivity all year round.
Features
4-cylinder, Tier 4 H Hyundai Infracore diesel engine
With high power output and low-end torque, this engine maintains the highest level of performance with enhanced efficiency. With an advanced fuel injection system and turbo charger, the engine drives tractor productivity in challenging conditions and applications.
Interior detailing to promote operator comfort
Activate core functions such as the PTO on/off switch easily from the main console. Quickly receive alerts and diagnostic information via the digital display. The operator platform features a spacious and ergonomic seat and a flat floor with a rubber mat to enhance comfort during entry, exit, and driving.
Durable, shock absorbing axle configuration
The heavy-duty 4WD front axle enables the tractor to lift heavy loads and tow large attachments while absorbing shock and maintaining stability. Powerful hydraulics support the power steering system, which uses a dual-action mechanism with a hydraulic cylinder and tandem-type hydraulic pump.
Deluxe cabin with climate control
Featuring easy entry and exit through both side doors and a host of modern amenities for maximum operator comfort, this tractor offers greater visibility with standard heating and AC.
3-point hitch with powerful lift capacity
The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.
6-port rear hydraulic valve for add-on functions
The 6-port valve on the rear of the tractor allows attachments of different functions to be controlled easily. This is particularly beneficial for applications like row crop farming and material handling, as trailers are fit with an optional hydraulic brake.
