Standard Features
750mm aluminum dispenser
Consistent film stretch, which maximizes film usage
Quick Fit Dispenser
Hydraulically Operated Cut &Hold
A smooth wrapping seal is guaranteed as the machine delivers a 50% overlap
Wrapping table is constructed of four heavy-duty endless belts, which ensure smooth and consistent bale rotation
McHale’s round bale wrapper range has been designed with the demands of today’s farmer and contractor in mind. This common-sense approach to design ensures that each machine’s operation is kept simple and user friendly.
Farmers and contractors all over the world are under pressure to reduce costs and increase output. To help with this, McHale concentrate on features like the patented hydraulic ground supported bale damper system, patented high-speed transfer system, patented tip rollers, hydraulically operated cut & hold system, 750mm dispensers and high specification components.
These features ensure long working life, reliability and a machine rugged enough to handle the toughest crops, heaviest bales and roughest ground conditions.
The McHale 991 L range of linkage round bale wrappers is the first choice for farmers and contractors who are interested in wrapping bales at the storage site. The 991 L range offers the perfect blend of tried and tested technology with solid construction and reliable performance. There are three models in the 991 linkage round bale wrapper range.

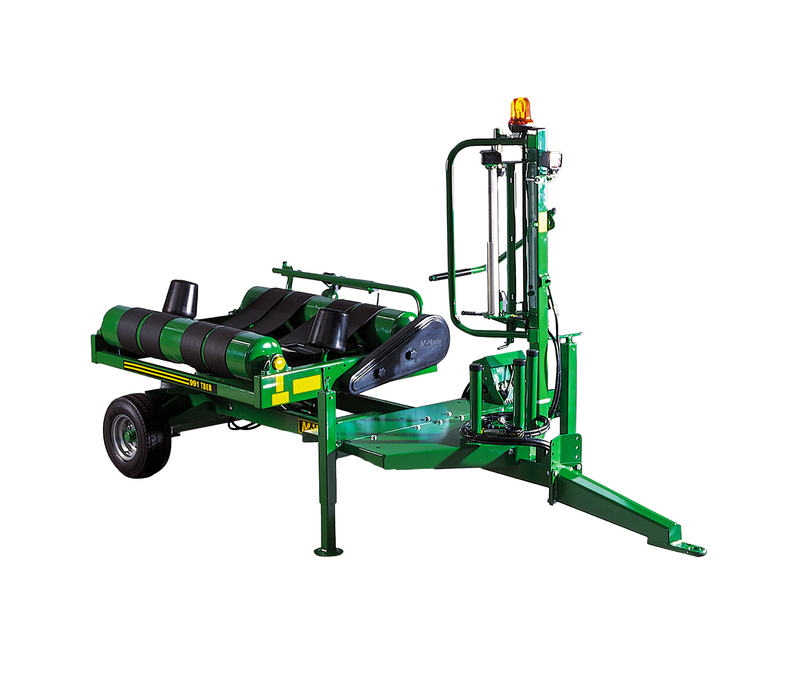

The 991 TBER is fully automatic and can be controlled via the control console. It has a specifically adapted chassis which can be used for transportation and mounting of a hydraulic power pack. The 991 TBER can be transported by a small tractor or telehandler to and from the static wrapping site.
Features
Extra Film Storage with Easy Handling
991 L range can carry 3 rolls of film:
1 roll (dispenser) + 2 rolls (film storage)
Cut & Hold System
At the end of the wrapping cycle, the hydraulically operated cut & hold system cuts and holds the film in position ready to wrap the next bale.
Uniquely designed, this system works reliably and consistently in all weather conditions. The plastic is gathered to one point, cut, and then pulled against the side of the bale so that tails are minimized.
Automatic Film Break Sensors
Automatic film break sensors monitor the plastic as it leaves the dispenser rollers. If plastic breaks or runs out, the machine will notify the operator via the control console.
If needed, the 991 High-Speed automatically switches to single dispenser mode, where the machine compensates for the broken or empty roll and ensures that the bale is wrapped correctly.
Easy Load Dispensers
The McHale lock and load system makes film loading quick and easy by locking the dispenser bobbin up when unloading and locking it back down by simply pulling the cable.
All machines are fitted with 750mm aluminum dispensers, which provide a 70% film stretch. Other film stretch options are available on request.
Shear Bolt Unit
A Shear Bolt protects the gearbox when wrapping poorly shaped bales. All machines are now driven by a heavier gearbox than previous models.
The gears are wider in diameter and have a larger tooth module on them, making them easier to drive. This heavy-duty gearbox contains a new key way protection system, which replaces the old roll pin system.
Expert Control Console
The Expert electronic control console fully automates the wrapping process. When the auto start lift arm paddle is activated, the bale is lifted up to the wrapping table, wrapped and tipped, ready to start the process again.
Radio Remote Control Kit for Static Wrapping
With a radio remote control kit, an operator can load a bale and activate the automatic cycle remotely.
While the bale is wrapping, the operator stacks the last wrapped bale and collects a netted bale to wrap next. The wrapped bale is automatically tipped and the netted bale is placed on the wrapping table to start the wrapping process again.
