Overview
Designed with You in Mind
Two trailer models available, the VSL 242 and VSL 250, offer capacities that range from 420 to 550 ft³.

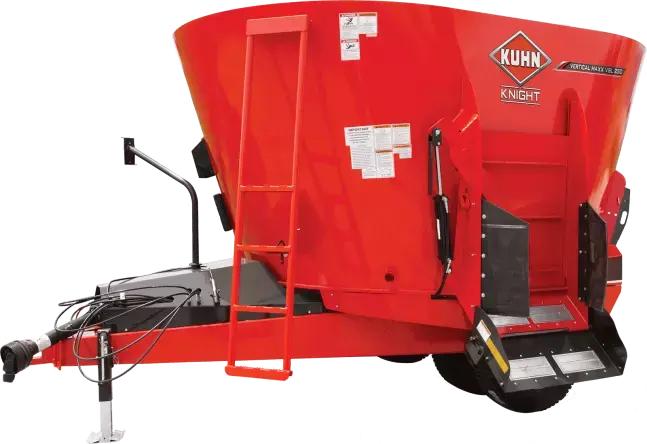

KUHN Knight VSL 200 Series Vertical Maxx® single-auger mixers are designed for small- to mid-sized dairy and beef producers. Two models, ranging from 420 to 550 cubic foot capacities (with extensions), offer the versatility of front, side or rear door unloading. The low-profile design is perfect for quick and easy loading. The proven cone-auger design reduces horsepower requirements, results in more efficient movement of feed and enhances final cleanoff of the auger when unloading.
Features
Cone-Style Auger & Kicker Design
Cone-style augers provide superior feed movement for faster, more complete mixing and processing. The smooth, continuous auger flighting (1) creates a rolling feed action that improves mixing. The top cover of the auger has a steep angle to aid in bale movement when processing round bales and to prevent feed from sitting on top of the auger between mixes. The straight bolt-on kicker (2) provides a fast and even discharge. Each lead flight is equipped with a cast iron scraper (3) that pulls material away from the tub walls into the auger for a better overall mix. Both the kicker and scraper are bolt-on attachments, making replacement very easy to save you precious time.
Hardened Knives
Large, 15” or 20”, replaceable hay cutting knives are available to best handle the material to be processed. The knives have two positions to adjust the aggressiveness of the knife angle. Versatility of knife length, angle and position allow for an optimal setting with a wide variety of ration ingredients.
A: Knife set in for slicing and cutting
B: Knife set out for grabbing and tearing
Adjustable Hay Stops
The adjustable hay stops provide flexibility in processing to provide you with the cut length necessary to reach the optimal nutritional value you’re striving for. This adjustability makes hay processing more efficient and helps minimize overprocessing.
Large Discharge Doors
For unmatched feed flow, these mixers feature a large discharge door. The large openings also help ensure less binding in high hay rations, especially when discharging high-roughage rations. Upgrades to the door pivot linkage allow for smooth operation of the door.
Low-Profile Design
Easily loaded with a skidsteer, the low-profile design of the VSL remains a hallmark feature. Choose a VSL where low loading height or low clearance in entrances to buildings is desired.
Heavy-Duty Single-Axle Undercarriage
The single axle, dual-wheel design allows for ease of maneuverability, reduced ground pressure and overall stability. Both implement and truck tires are available.
Heavy-Duty Front, Side and Rear Doors
VSL 200 Series mixers feature heavily reinforced doors for tight closure and long service life. The hydraulically activated door linkage reduces the overall height of the mixer to allow clearance in barns with rafter/door limitations. It also allows for faster unloading as a result of a higher door opening height than would be possible with straight pulled doors.
Fully Welded Tub Design
The completely welded body provides superior strength and durability for long life without cracking at bolted joints. The heavy-duty, reinforced floor and body help ensure dependable service and long life.
Simple, Dependable Drive
A planetary drive system provides simplicity for long life and heavy-duty use. The flooded top bearing eliminates the need for extra grease zerks. This proven and rugged drive system, coupled with an external oil reservoir, is virtually maintenance free, with the exception of scheduled gear lube changes.
Two-Speed Gearbox
A shiftable, 2-speed gearbox option allows for reduced input horsepower and auger speed for easier starting and mixing, even with smaller tractors. The gearbox can be shifted manually on the machine, or with an in-cab electric shift option for operator convenience.
Shear Bolt Overload Protection
The planetary gearbox is protected by a shear bolt from overload and torque spikes caused by obstructions.
Equipment
Hay-Retention Ring
The steel hay-retention ring helps contain large round bales during processing and reduces hay spillage more effectively compared to similar options on competitive models.
Capacity Belt Extension
A belt extension, added to the top of the mixing tub, increases capacity by about 10%. It also improves hay containment, and rubber construction is durable and pliable for long life.
Flat Chain & Slat Front Conveyor Front
The flat, front conveyor option is simple to operate and offers convenient feeding from either side of the machine on trailer models. Hydraulic side shift is standard and gives you the abilit to shift the conveyor a total of 16" from aide to side for accurate feed placement.
Either or both ends of the flat conveyor can be fitted with a hanging belt with magnets to catch small metal fragments. The hanging belt also helps to even feed floe off the end of the conveyor. A fixed tip-off, with magnets, can be added to catch small metal fragments present in the feed and help prevent hardware disease.
Incline Chain & Slat Conveyor - Front
The incline conveyor option is available with the choice of wither right or left side unloading on trailer models. This option allows the flexibility for both floor feeding and feeding into bunks of various heights where a longer or higher reach is needed for precise feed placement. A fixed tip-off, with magnets, can be added. The magenets work to catch small metal fragments present in the feed and help prevent hardware disease.
Slide Tray
The side-discharge slide tray on the VSL & VT models has simple hydraulic controls and helps guide the feed further away from the tire path. Discharge magnets help catch metal fragments to prevent hardware.
Side Belt Conveyor
An optional conveyor belt can be added for easy and consistent placement of feed at varying heights including the filling of mobile feed carts. The belt offers quiet operation and consistent feed flow. Belt conveyors are able to run steeper versus a chain and slat because you can run the conveyor faster, depending on the materials. The low profile sides allow the conveyor to fold up tighter to the machine for a more narrow transport width. An optional deflector helps with placement of the feed and provides an option for magnets.
Side Chain & Slat Conveyor
Optional side conveyors provide the ultimate in durability and long life. Heavy-duty components ensure reliable service, even in extreme use conditions. Multiple conveyor length options offer unmatched flexibility to tailor the discharge to your needs. A fixed tip-off with magnets can be added to catch small metal fragments present in the feed and help prevent hardware disease.
Scale Systems
Different scale brands, models and option are available for all types of operations, ranging from basic to high-end feed-tracking programs. Optional remote indicators are available for placement that will allow easier viewing.
5-Year Warranty
KUHN offers a 5-year prorated warranty on planetary and 2-speed gearboxes on all vertical mixers. KUHN also offers a 1-year warranty on all other machine components.
Specifications
Capacity
VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
Capacity | 420 ft³ (11.9 m³) | 500 ft³ (14.2 m³) |
Capacity with Extensions | 470 ft³ (13.3 m³) | 550 ft³ (15.6 m³) |
Maximum Net Load | 14,100 lbs (6,396 kg) | 16,500 lbs (7,484 kg) |
Overall Height | 98" (249 cm) | 95" (241 cm) | 108" (274 cm) | 105" (267 cm) |
Overall Length | 214" (544 cm) | 194 (493 cm) | 218" (554 cm) | 198" (503 cm) |
Mixer Dimensions
VSL 242 TRAILER (FRONT|SIDE) | VSL 250 TRAILER (FRONT|SIDE) | |
Mixing Chamber Length | 151" (384 cm) | 159" (404 cm) |
Overall Width - Mixer Only (No Discharge) | 113" (287 cm) | 117" (297 cm) | 113" (287 cm) | 117" (297 cm) |
Tread Width | 99" (252 cm) | 99" (252 cm) |
Mixing Specifications
| VS 127 TRAILER | VS 135 TRAILER |
No. of Augers | 1 | 1 |
Auger RPM - Standard / High Speed | 27 / 40 (40 for single speed option) | 27 / 40 (40 for single speed option) |
Knives per Auger (Standard / Maximum) | 5/6 | 6/7 |
Auger Diameter | 108" (274 cm) | 108" (274 cm) |
PTO Drive | 540 or 1,000 RPM | 1,000 RPM |
