This unique cylinder design provides smooth and uniform travel through the entire stroke and rapid cylinder retraction spreading is completed. The cylinders are completely protected by a structural tube member. This stops manure from falling directly onto the cylinder which helps prevent premature seal failure.

The redesigned pusher on the HP 140 features a solid front panel instead of a bolt-on extension. The single-piece pusher increases the strength and longevity of the pusher assembly.

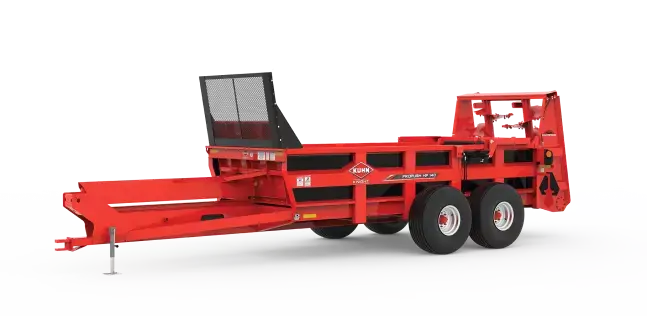

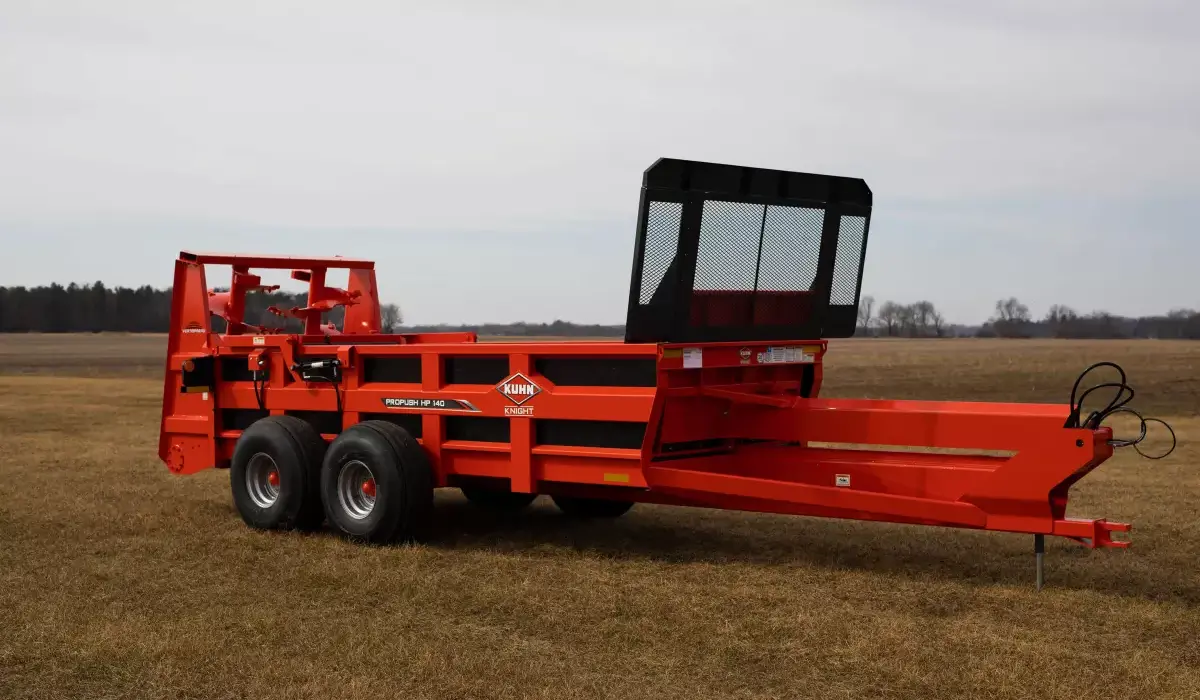

The all-steel, welded ProPush construction provides a solid framework and includes a reinforced tongue that pulls directly from the full-width axle. This results in a stronger, more dependable spreader since the unit is pulled from the axle rather than the front of the box.

A greasable overrunning clutch prevents beater backlash force when the PTO is disengaged, allowing the beaters to free wheel to a stop. This provides protection for the gearbox and spreader driveline.

The solid poly floor and polylaminate sides reduce friction and promote self-cleaning to help prevent material buildup on the inside of the spreader. The polylaminate floor and sides come with a 10-year breakage warranty.

VertiSpread vertical beaters provide a wide spread pattern in an array of materials. These beaters are designed to spread material in a 25-30 feet pattern at rates ranging from 5-30 tons per acre. VertiSpread vertical beaters are designed particularly for operations that spread a wide variety of solid materials such as penpack or material heavy with dirt. The beater module can easily be removed for storage while stockpiling, providing you with greater machine versatility.
