Overview
Outstanding Performance & Reliability

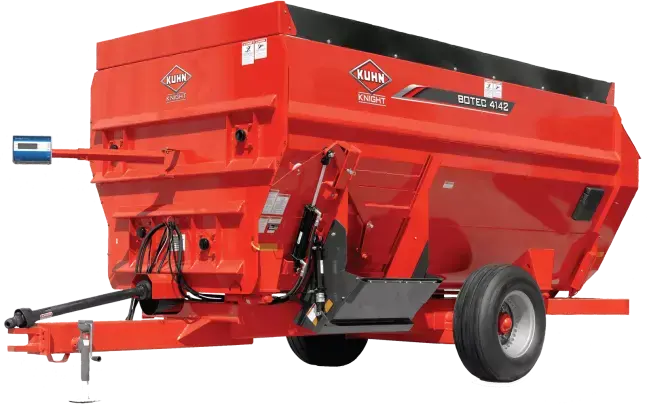

KUHN Knight 4100 Series 4-auger mixers are designed for small- to mid-sized cattle operations with features to provide reliable, efficient and affordable mixing. These mixers offer capacities from 360 to 480 ft³, and are available in trailer and truck configurations.
KUHN Knight 4100 Series 4-auger mixers are designed for small- to mid-sized cattle operations with features to provide reliable, efficient and affordable mixing. Whether you’re feeding a higher roughage dairy ration or a feedlot ration with higher levels of grain and byproducts, you can tailor your machine with features and options to best meet your needs. The drive system, undercarriage, box construction and weigh bar system have outstanding serviceability and reliability. The overall superior mixing performance of this machine stands out from the competition. You get genuine KUHN Knight quality with an innovative and streamlined design, durable components and a rugged build to help ensure reliability and long life.
Features
A Quality Ration and Complete Cleanout
The raised lower right auger configuration, along with the close tolerance between the auger flighting and the auger troughs, results in a fast and complete cleanout. The offset upper right auger in combination with the raised lower auger requires less horsepower and provides a faster mix time.
Mix Full or Partial Loads Due to the cross-mixing action of horizontal auger mixers, Botec TMR mixers can properly mix batches that fill only a portion of the mixing tub providing you with the versatility to mix any size ration.

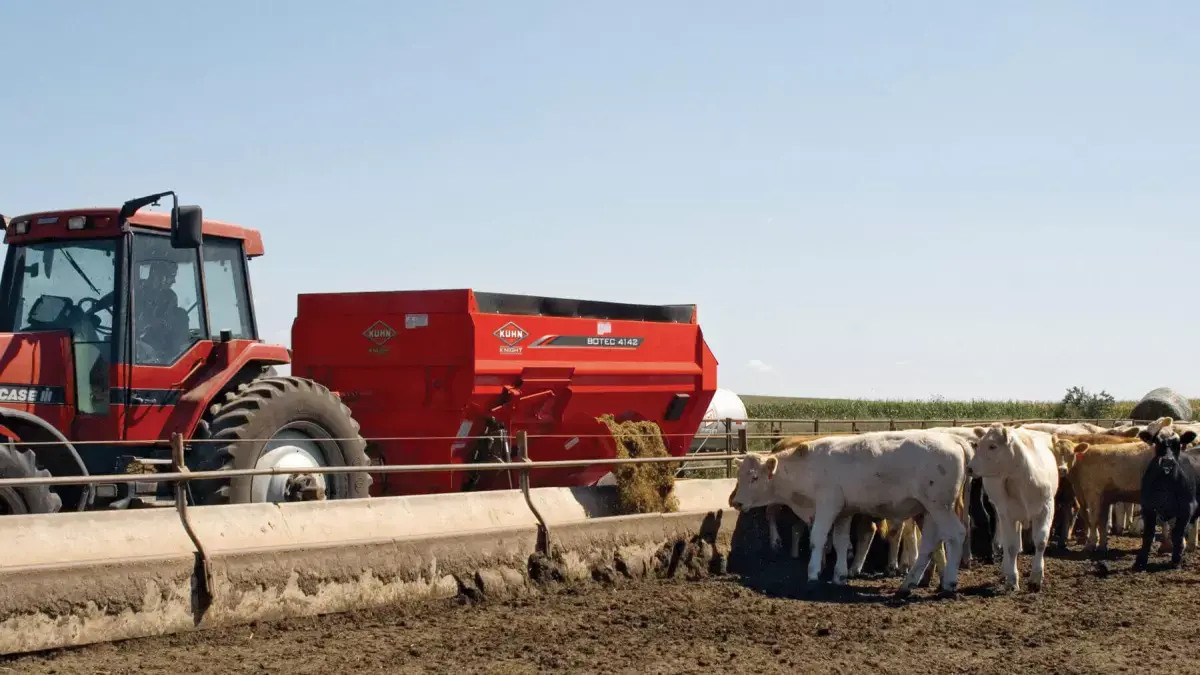

Even, Consistent Discharge
The close auger tolerances and raised lower auger design provide a fast, consistent discharge from beginning to the end of unloading. This results in even feed placement across the entire length of the bunk without a delay for mixer cleanout.
Competitive Mixers
Having parallel lower augers creates more force between the augers without increasing mixing capability. Parallel augers also do not transition the feed from right to left as well as if the right auger was raised. This design leads to slow, incomplete cleanout, decreases the mixer's processing ability and increases the horsepower requirements.
Heavy-Duty Rear Drive
The reliable heavy-duty roller chain drive runs in oil and has spring-tensioned poly idlers for long life.
Nylon Auger Bearings
Reliable, externally mounted nylon bearings provide simple maintenance with reduced sensitivity to contamination.
Discharge Door & Linkage
Large door openings allow for better ration flow and faster feed delivery. The discharge door frame is more rigid and less complex for dependable day-in and day-out operation.
4-Point Weigh Bar System
Four-point weigh bar system comes standard as a cost effective and simple weighting system, yet still maintains 99.5% accuracy.
Multiple Discharge Options
To best suit your feeding needs, you can choose from a slide tray, chain and slat conveyor or a 3-auger discharge to be equipped on your 4100 Series mixer.

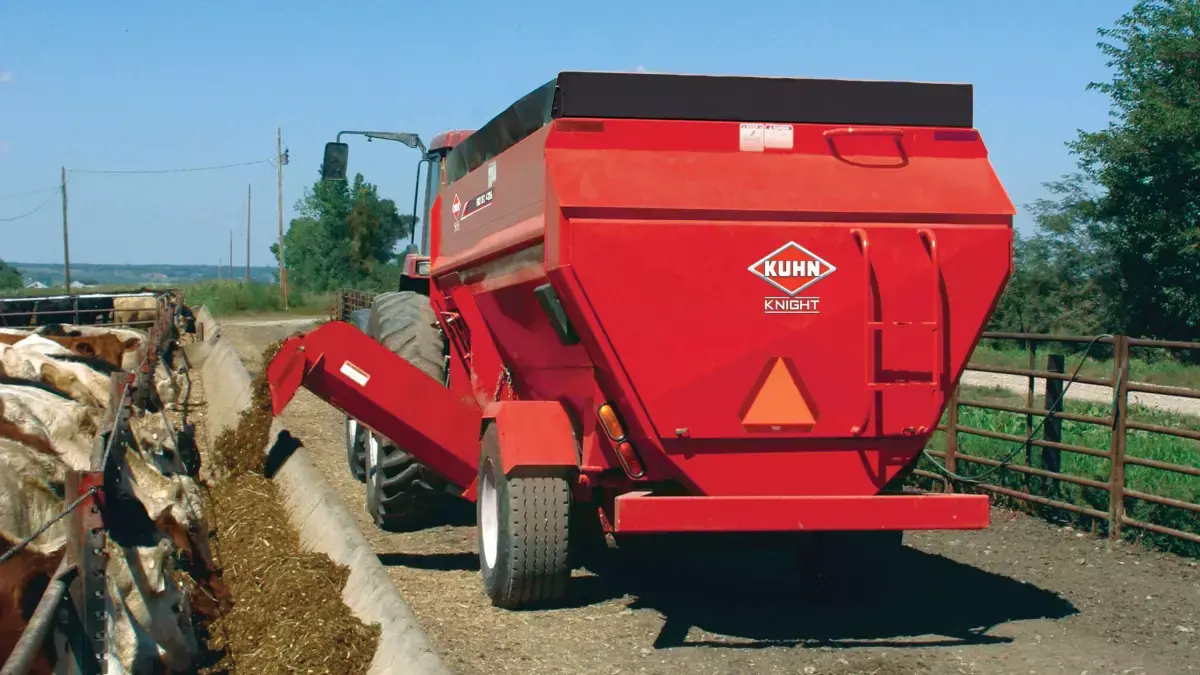

Slide Tray
The side discharge slide tray has simple hydraulic controls and helps guide feed further away from the tire path. Magnets are standard on slide tray.
Chain and Slat Conveyor
Rugged chain and slat conveyor options provide the ultimate in durability and long life. Heavy-duty components ensure reliable service and multiple conveyor length options offer unmatched flexibility to match different feeding situations.
3-Auger Discharge
The 3-auger discharge allows adjustment for feeding into higher bunks. It has a simple, hydraulic drive that provides smooth, even discharge. Long lasting, poly chute liners help prevent rust and limit wear. The 3-auger discharge comes standard with fixed tip-off and built-in magnets.

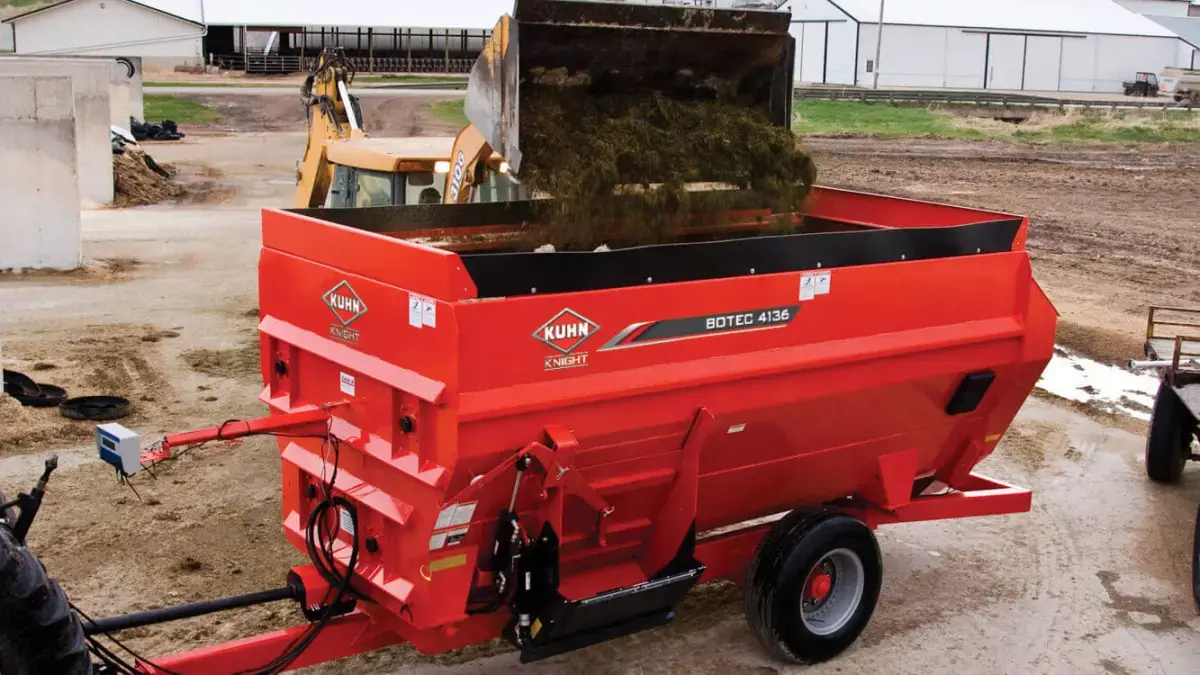

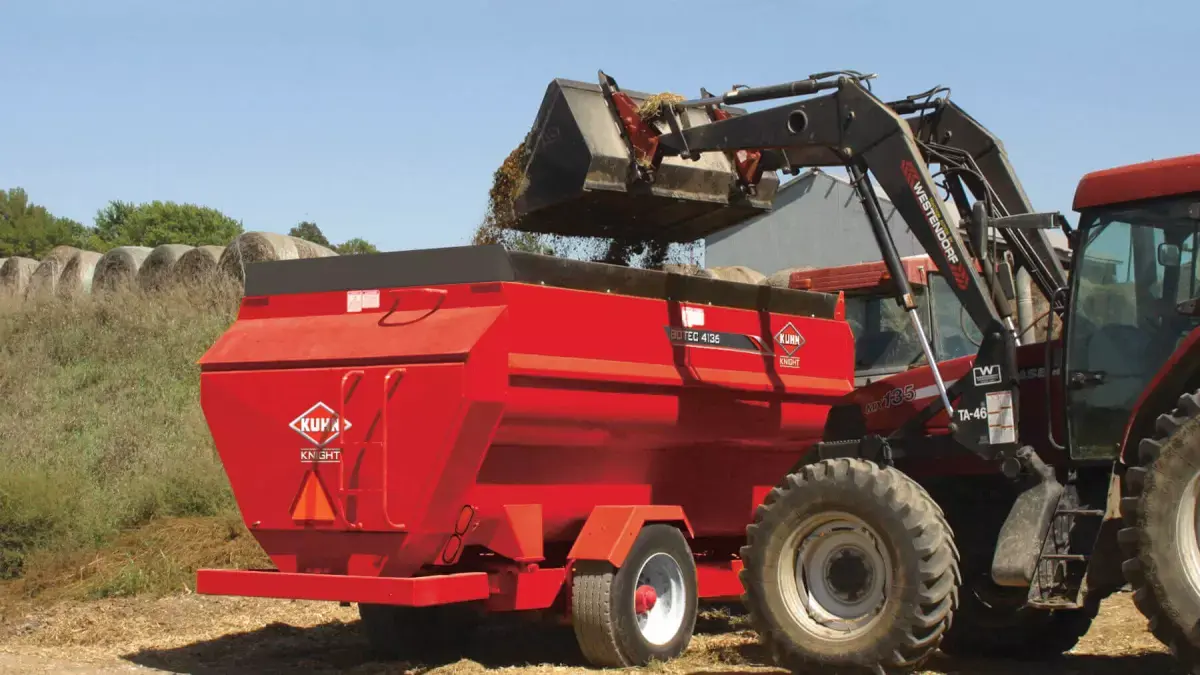

Trailer & Truck Models
To suit your operation’s needs, KUHN 4100 Series mixers are available in a trailer or truck-mounted configuration.
Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not in use for feeding.
Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again.
Equipment
Capacity Belt Extension
A belt extension added to the top of the mixing tub increases capacity by about 10%. It also improves hay containment, and the rubber construction is durable and pliable for long life.
Roughage Maxx® System
The Roughage Maxx® System incorporates scalloped knives on the lower auger to maximize hay processing. The knives provide a more consistent particle length and more even blending. The result is a more uniform and palatable ration with reduced sorting for improved feed efficiency.
Partial or Full Stainless Steel Liner
The partial liner covers the most critical wear areas in the mixer and provides added protection and longer life. The full liner completely covers all of the high wear areas for unmatched dependability and long service life.
Scale Systems
Different scale brands, models and options are available for all types of operations, ranging from the very basic to high-end feed-tracking programs that use a remote scoreboard display. Optional remote indicators are available for placement that will allow easier viewing.
Specifications
Capacity
4136 TRAILER | 4142 TRAILER | 4136 TRUCK | 4142 TRUCK | 4136 STATIONARY | 4142 STATIONARY | |
Capacity | 360 ft³ (10.2 m³) | 420 ft³ (11.9 m³) | 360 ft³ (10.2 m³) | 420 ft³ (11.9 m³) | 360 ft³ (10.2 m³) | 420 ft³ (11.9 m³) |
Capacity with Extensions | 400 ft³ (11.3 m³) | 460 ft³ (13 m³) | 400 ft³ (11.3 m³) | 460 ft³ (13 m³) | 400 ft³ (11.3 m³) | 460 ft³ (13 m³) |
Maximum Net Load | 10,800 lbs (4,900 kg) | 12,600 lbs (5,715 kg) | 10,800 lbs (4,900 kg) | 12,600 lbs (5,715 kg) | 10,800 lbs (4,900 kg) | 12,600 lbs (5,715 kg) |
Mixer Dimensions
4136 TRAILER | 4142 TRAILER | 4136 TRUCK | 4142 TRUCK | 4136 STATIONARY | 4142 STATIONARY | |
Overall Height | 98" (249 cm) | 98" (249 cm) | 116" (295 cm) | 116" (295 cm) | 97" (246 cm) | 97" (246 cm) |
Overall Length | 223" (566 cm) | 246" (625 cm) | 172" (437 cm) | 195" (495 cm) | 196" (497 cm) | 22" (559 cm) |
Mixing Chamber Length | 144" (366 cm) | 168" (427 cm) | 144" (366 cm) | 168" (427 cm) | 144" (366 cm) | 168" (427 cm) |
Overall Width - Mixer Only (No Discharge) | 90" (229 cm) | 90" (229 cm) | 90" (229 cm) | 90" (229 cm) | 89" (226 cm) | 89" (226 cm) |
Tread Width - Single Axle | 87" (221 cm) | 87" (221 cm) | 96" (244 cm) | 96" (244 cm) | - | - |
Mixer Specifications
4136 TRAILER | 4142 TRAILER | 4136 TRUCK | 4142 TRUCK | 4136 STATIONARY | 4142 STATIONARY | |
Lower Auger Flighting Diameter | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) |
Lower Auger - Outside Diameter | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) |
Lower Auger Drive Shaft Diameter | 3" (7.6 m) | 3" (7.6 m) | 3" (7.6 m) | 3" (7.6 m) | 3" (7.6 m) | 3" (7.6 m) |
Lower Auger Flighting Thickness - Front/Rear | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) | 1/2" (1.3 cm) |
Upper Auger Flighting Diameter | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) | 24" (61 cm) |
Upper Auger Flighting Thickness | 3/8" (1 cm) | 3/8" (1 cm) | 3/8" (1 cm) | 3/8" (1 cm) | 3/8" (1 cm) | 3/8" (1 cm) |
Upper Auger Drive Shaft Diameter | 3" (7.6 cm) | 3" (7.6 cm) | 3" (7.6 cm) | 3" (7.6 cm) | 3" (7.6 cm) | 3" (7.6 cm) |
Upper Auger Tube - Outside Diameter | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) | 5 9/16" (14 cm) |
