Overview
Maximize Crop Yield Potential and Productivity
Utilizing a unique 4-step tillage system, the Landsman offers unmatched productivity with a 6-bar frame for non-stop residue handling. Sizes to 45' produce up to 400 acres per day of ideal seedbed.

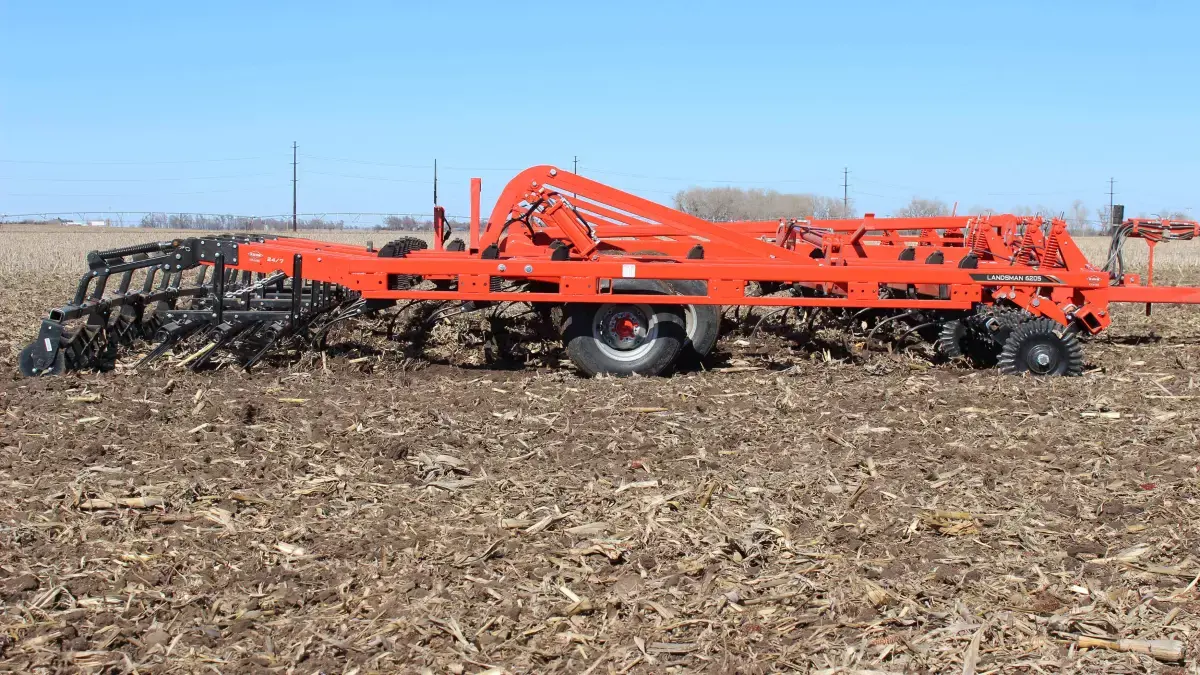

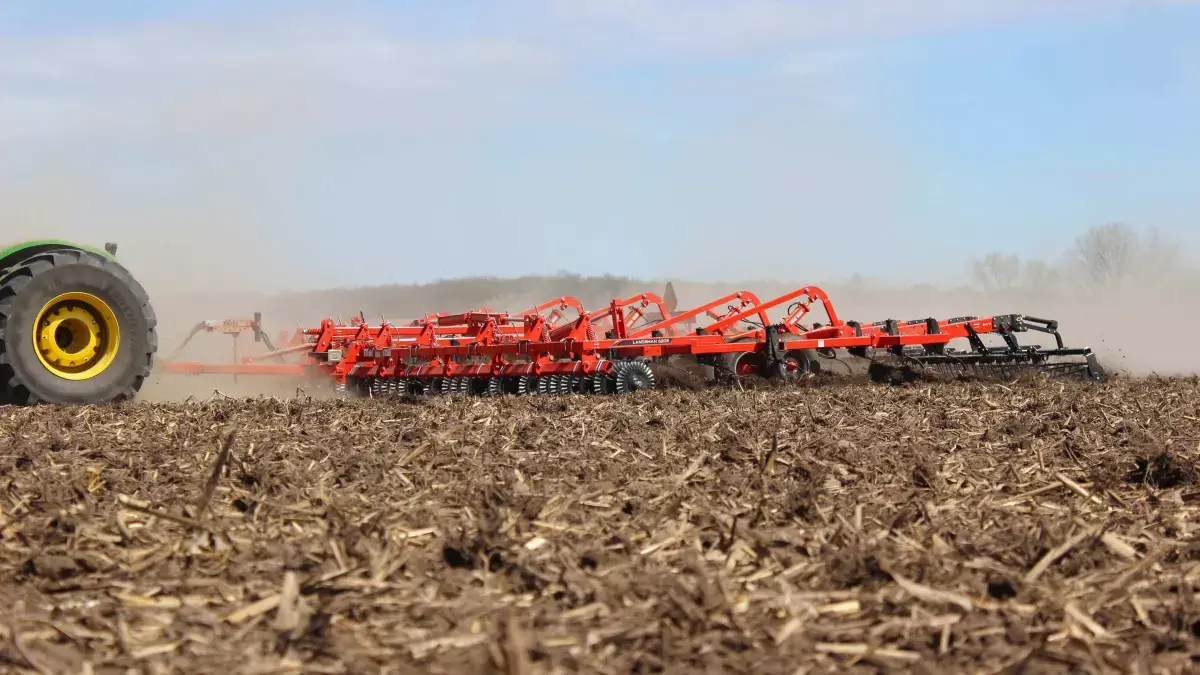

The KUHN Krause Landsman® 6205 delivers excellent residue flow handling capability, soil mixing, conditioning and leveling in one pass. Exclusive Excalibur® VT blades with 32-flute edge uniformly size residue for smooth flow through the machine. The gang, angled 8 degrees toward the rear of the machine, minimizes lateral soil movement to improve the leveling action of the shanks. The 24/7® leveling systems increase yield potential through better seedbed condition and increase productivity with non-stop farming.
3-Section, Single-Fold: 18' - 31'6"; 5-Section, Double-Fold: 36' - 45'
Features
Exclusive 4-Step Process
Cut Residue
Exclusive KUHN Krause Excalibur® VT blades with their 32-flute edge uniformly size residue for smooth flow through the machine. The gang, angled 8 degrees toward the rear of the machine, minimizes lateral soil movement to improve the leveling action of the shanks.
Mix
Cultivator shanks provide thorough mixing action, dislodge weeds and settle soil. The Landsman® offers a choice of 7" spacing for smaller clod sizing and more residue coverage, or 9" spacing for maximum residue handling capabilities.
Level Soil
Tine or spike harrows provide excellent clod breaking and additional leveling action. Choose the harrow system that best fits your cropping practice.
Enhance Seedbed Condition
The exclusive 24/7® Soil Conditioning Reel, available in 3-row tine with reel or 3-row spike with reel, accomplishes final clod sizing and soil firming with the ability to select a range of constant down pressure or float position to extend the weather/tillage window.
Manage Residue
Crop residue management is critical for a healthy, productive soil environment. Sized residue, properly mixed into the soil, minimizes soil compaction, releases stored nutrients and aids in moisture infiltration. Residue cover provides protection against soil erosion from heavy rainfall and high winds.
The front-mounted gangs on the Landsman® are the beginning of this crop residue management process. The 8" gang angle and Excalibur® VT blades combine to minimize lateral soil movement. The exclusive 32-flute Excalibur blade uniformly sizes residue and begins the leveling process. The 9-1/8" blade spacing provides 24% more residue cutting force than competitive models with narrower blade spacing. Hydraulic gang control, providing on-the-go adjustment is standard.
Maximum Residue Capacity
The Landsman® cultivator shanks provide thorough mixing action, dislodge weeds and settle soil. Two shank spacing options are available. For smaller clod sizing and average residue coverage, choose the 7'' spacing. The 9'' spacing easily accommodates heavy residue coverage. KUHN Krause offers several agronomic shank choices to meet your specific needs.
Shank Mount and Shank Options
With a variety of shank and mount options, the KUHN Krause Landstar® can be configured to meet your agronomic needs.
24/7 Leveling Systems
KUHN Krause offers a variety of harrows to meet your specific soil and residue requirements. These harrows are available for all sizes and provide time saving features to increase overall productivity.
Equipment
Single-Point Depth Control
Single-point depth control allows fine tuning of working depth for precise seedbed conditions. The depth indicator is located on top of the tube for easy viewing.
Gang Depth Adjustment
Hydraulic gang depth adjustment is spring cushioned to protect against rock damage and allows on-the-go depth setting from equal to or 5" above the sweeps. This allows tailoring of residue coverage for fragile and non-fragile crop residues.
Walking Beams
Walking beams allow for consistent working depth on rough ground and more stable road transport.
Two Reel Options Available
Choose from two agronomic conditioner designs. The heavy-duty round spiral reels provides clod sizing and firming in mellow, loam-type soils, and offers better performance in wet conditions. The heavy-duty flat spiral reel provides aggressive clod sizinf in hard or high-clay content soils.
Guardian Hitch
This exclusive option guards against stress on the tractor drawbar and implement frame. Lateral drawbar forces are transferred through the hitch pivot where shock load from steering input is dampened by urethane blocks. Choose from the articulating ball Cat III, IV or V double-bolt, cast hitch depending on model.
Tractor Interface Center
The tractor interface center prevents hydraulic hoses from binding in turns and adds operator convenience. Includes hose routing chart, colour-coded hose grips, storage for light hookup and owner's manual.
Specifications
6205-21 | 6205-18 | 6205-27 | 6205-24 | 6205-31 | 6205-36 | 6205-42 | 6205-45 | |
Frame Type | 3-Section | 3-Section | 3-Section | 3-Section | 3-Section | 5-Section | 5-Section | 5-Section |
Number of Shanks | 29 | 25 | 37 | 33 | 43 | 49 | 57 | 61 |
Shank Spacing | 9" (22.8 cm) | 9" (22.8 cm) | 9" (22.8 cm) | 9" (22.8 cm) | 9" (22.8 cm) | 9" (22.8 cm) | 9" (22.8 cm) | 9" (22.8 cm) |
Number of Blades | 26 | 24 | 36 | 32 | 40 | 46 | 56 | 60 |
Blade Spacing | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) | 9-1/8" (23.2 cm) |
Working Width | 21' (6.5 m) | 18' (5.5 m) | 27' (8.3 m) | 24' (7.4 m) | 31'6" (9.7 m) | 36' (11 m) | 42' (12.9 m) | 45" (13.8 m) |
Working Depth Range | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) | 1"- 6" (2.5 - 15.2 cm) |
Gang Angle | 8° | 8° | 8° | 8° | 8° | 8° | 8° | 8° |
