Overview
Acre-Eating Compaction Removal
Complete your primary tillage faster and more efficiently while handling high residue levels through the machine. With 7- to 25-shank models available, the LANDSAVER offers a variety of working widths to optimize on tractor horsepower. Working widths range from 2.8 m to 10.1 m.

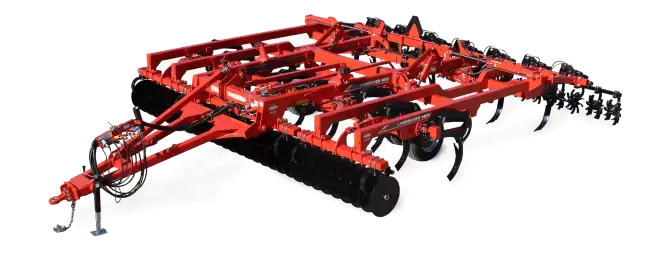

The KUHN LANDSAVER 4810 coulter chisel provides residue cutting and aggressive compaction removal with a variety of shank and point options to meet different requirements. This promotes breakdown of crop residue and allows good root development for the next crop.
Available in 7- to 25-shank configurations, the LANDSAVER 4810 coulter chisel features constant flow coulter down-pressure and a completely redesigned K2000 spring reset shank option. Star Wheel treaders are available as an additional attachment for leveling and residue mixing.
Features
Coulter
Residue management begins with the cutting-edge coulter gang assemblies. Designed around a 1 ¾" gang bolt, the 22" diameter blades on 8" spacing handle even the toughest residue with ease. A constant flow hydraulic circuit provides adjustable, uniform down-pressure to the coulter gangs for even soil penetration and residue sizing. Coulters feature PEER TILLXTREME maintenance-free bearings.
Shank Spacing
Shanks are spaced 16" to allow for maximum residue incorporation and soil flow. Double rank design provides 32" between adjoining shanks, plus 12 inches of stagger between shanks for unrestricted residue and soil flow.
Shank Options
Shear-Bolt Shanks
Extra-heavy, rigid clamp
Retains shank after shear-bolt trip
2 ½" x 1 ¼" x 32" parabolic shank
K2000 Spring Reset Chisel Shanks
15" of trip height
2,000 pounds of point load
2 ½" x 1 ¼" x 32" parabolic shank
Forged Steel Point Options
2" Reversible Forged Steel Straight Points
Excellent soil penetration with maximum residue retention
Cuts compaction
3" One-Piece Forged Steel Twisted Shovels
Good soil penetration and residue mixing action
4" One-Piece Forged Steel Twisted Shovels
Maximum soil and residue mixing
Maximum soil tilth
Double K Cast Chromium Carbide Point Options
Double K Cast Chromium Carbide 7" Wing Chisel Point
Increased seedbed soil fracture over standard 4" twisted shovels
Double wear life compared to 4" one-piece forged steel twisted shovels
Double K Cast Chromium Carbide 2" Reversible Straight Chisel Point
Excellent soil penetration with maximum residue retention
Double wear life compared to 2" reversible forged steel straight points
Star Wheel Treader Attachment
KUHN exclusive Star Wheel treaders are an available attachment for customers desiring additional residue mixing and anchoring in addition to a more level seedbed. The Star Wheel treaders are hydraulically controlled allowing the operator to vary the depth optimizing the leveling capability in varying soil moisture, residue amounts and soil types.
Chopping Reel Rear Attachment
The chopping reel rear attachment offers moderate leveling, pins residue and reduces clods during a primary tillage pass with the Landsaver 4810. Reel assemblies feature five heavy duty blades configured in a spiral mounting system, heavy-duty bearing arm mounts and maintenance-free bearings.
Heavy-Duty Tine
The heavy-duty tine attachment provides an intermediate leveling option. The 5/8" x 30" tines, mounted in three rows, result in 4" tine spacing. Tine angle can be adjusted 5 varying degrees (53°, 46°, 39°, 32°, 25°) without wrenches or pulling pins. The 14" distance between each rank of tine bars provides adequate flow for higher residue and moist soil conditions.
Equipment
Guardian Hitch
This exclusive option guards against stress on the tractor drawbar and implement frame. Lateral drawbar forces are transferred through the hitch pivot where shock load from steering input is dampened by urethane blocks. Choose from the articulating ball Cat III, IV, or V double-bolt, cast hitch, depending on the model.
Tractor Interface Center
The tractor interface center prevents hydraulic hoses from binding in turns and adds operator convenience. Includes hose routing chart, colour-coded hose grips, storagefor light hookup, and owner's manual.
Specifications
4810-7 | 4810-9 | 4810-11 | 4810-13F | 4810-15 | 4810-17 | 4810-19 | 4810-21 | 4810-23 | 4810-25 | |
Frame-Type | Rigid | Rigid | Rigid | Folding Wing | Folding Wing | Folding Flex-Wing | Folding Flex-Wing | Folding Flex-Wing | Folding Flex-Wing | Folding Flex-Wing |
Number of Shanks | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
Shank Spacing | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) | 16" (40.6 cm) |
Coulter Blade Spacing | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) |
Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades | 22" x ¼", Smooth Coulter Blades |
Working Width | 9'4" (2.8 m) | 12' (3.6 m) | 14'8" 4.5 m) | 17' 4" (5.2 m) | 20' 6.1 m) | 22' 8" (6.9 m) | 25' 4" (7.7 m) | 28' (8.5 m) | 30' 8" (9.3 m) | 33' 4" (10.1 m) |
Hitch Type | CAT III Articulating Ball, 1 ½" Pin | CAT III Articulating Ball, 1 ½" Pin | CAT IV Articulating Ball, 2" Pin | CAT IV Articulating Ball, 2" Pin | CAT IV Articulating Ball, 2" Pin | CAT IV Articulating Ball, 2" Pin | CAT IV Articulating Ball, 2" Pin | CAT V Articulating Ball, 2-¾" Pin | CAT V Articulating Ball, 2-¾" Pin | CAT V Articulating Ball, 2-¾" Pin |
Recommended Tractor Power | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank | 20 - 25 ENG HP/shank |
