Overview
The Specialty Crop Tillage Expert

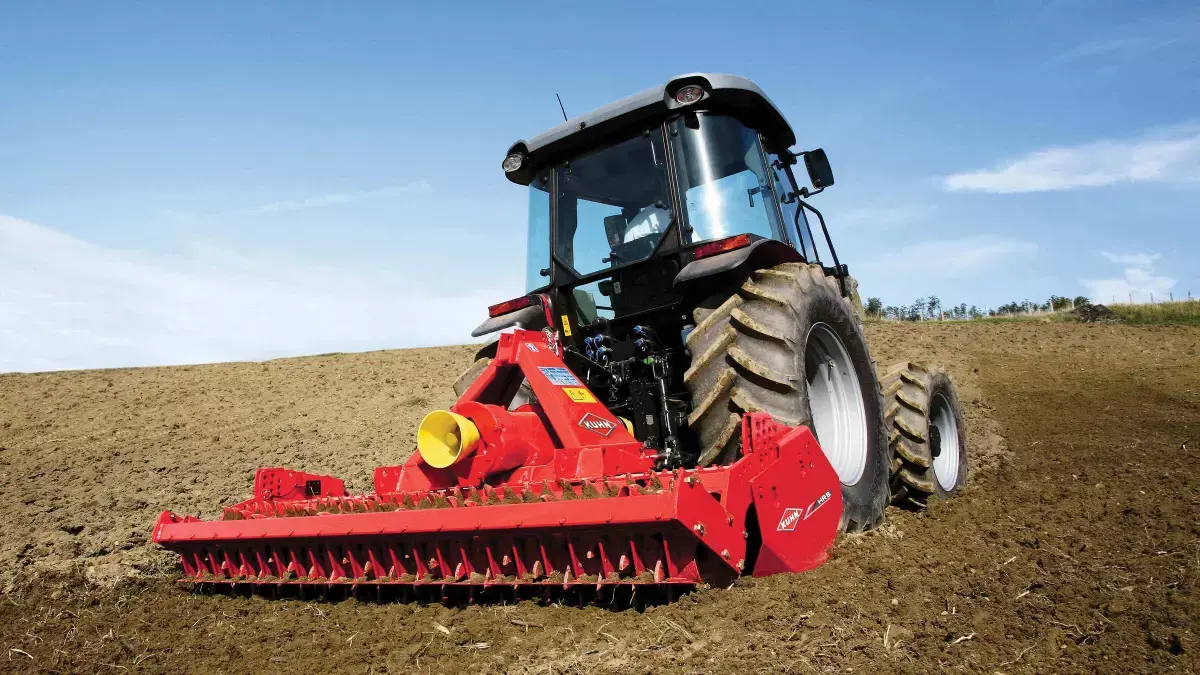

With their low height, rounded frame edges combined with narrow widths, the HRB 102 Series power harrows are ideal for specialized work in orchards and vineyards.
The KUHN HRB 102 Series orchard and vineyard power harrows are exceptional due to their robustness and reliability. These rigid power harrows have working widths ranging from 4' to 9'10". They provide the same work quality, design and manufacturing level as larger models. The benefits of these tools include: easy adjustability to adapt to variable conditions and reduced maintenance and operating costs.
Features
Side Deflectors
The shape of the side deflectors provides efficient ground guidance and channeling to ensure a good finish between passes.
Depth Control
A large-diameter, maintenance-free Crumbler roller enables good soil framing and efficient working depth adjustment. The HRB 202, 252 D and 302 D power harrows can also be equipped with a Packer roller.
Hitch
The hitch is made from a shaped and welded triangular steel plate. This helps ensure longevity in all soils and conditions.
Compact and Durable Housing
The section, blade teeth and blade holders form a compact and durable assembly. The small distance between the section and the top of the blade holders prevents stones from getting jammed. Moreover, the soil flow is directed down toward the blades.
Driveline
The HRB 122, 152, 182 and 202 come standard with shear bolt protection for the driveline. A friction slip clutch is standard with the HRB 252 D and 302 D, with an optional cam clutch. All KUHN power harrows feature a rear PTO output shaft.
Gearbox
The HRB 122, 152, 182 and 202 feature a single-speed gearbox. The interchangeable Duplex gears on the HRB 252 D and 302 D allow different rotor speeds for excellent mixing whether the soil is hard or crumbly. These models also offer additional gear sets for an even wider range of available rotor speeds.
Simple Design
With low heights, rounded frame edges, and narrow widths, the HRB 102 Series harrows are the ideal tools for specialized work.
Easy Transport
With their narrow width, these machines are easily and safely transported from one field to another.
Equipment
N/A
Specifications
HRB 122 | HRB 152 | HRB 182 | HRB 202 | HRB 252 D | HRB 302 D | |
Maximum PTO power | 80 HP | 80 HP | 80 HP | 80 HP | 140 HP | 140 HP |
Minimum PTO power | 25 HP | 30 HP | 35 HP | 40 HP | 50 HP | 60 HP |
Number of Rotors | 4 | 5 | 6 | 7 | 8 | 10 |
Rotor Speed | 253 rpm | 221/280 rpm | 221/280 rpm | |||
Maximum Working Depth | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) | 8" (20 cm) |
Hitch | Cat. 1 and 2 | Cat. 1 and 2 | Cat. 1 and 2 | Cat. 2 and 3 | Cat. 2 and 3 | Cat. 2 and 3 |
Working Width | 4' (1.2 m) | 5' (1.5 m) | 6' (1.8 m) | 6'11" (2.1 m) | 8'2" (2.5 m) | 9'10" (3.0 m) |
PTO Speed | 540 rpm only | 540 rpm - Standard 1,000 rpm - Optional | 540 rpm - Standard 1,000 rpm - Optional |
