JCB 525-60 AGRI
Overview
manufacturer
JCB
model
525-60 AGRI
type
Telehandler
category
Telescopic Handlers
horsepower
74 hp
Engine Type
JCB Diesel by Kohler
Travel speed
30 km/h
Quick Specs:
Manufacturer: JCB
Model: 525-60 AGRI
Type: Telehandler Horsepower: 74
Engine: JCB Diesel by Kohler
Max Lift Capacity: 5,512 lbs
Max Lift Height: 19' 8"
Lift Capacity at Full Height: 3,858 lbs
Lift Capacity at Full Reach: 1,764 lbs
Max Speed: 19 mph

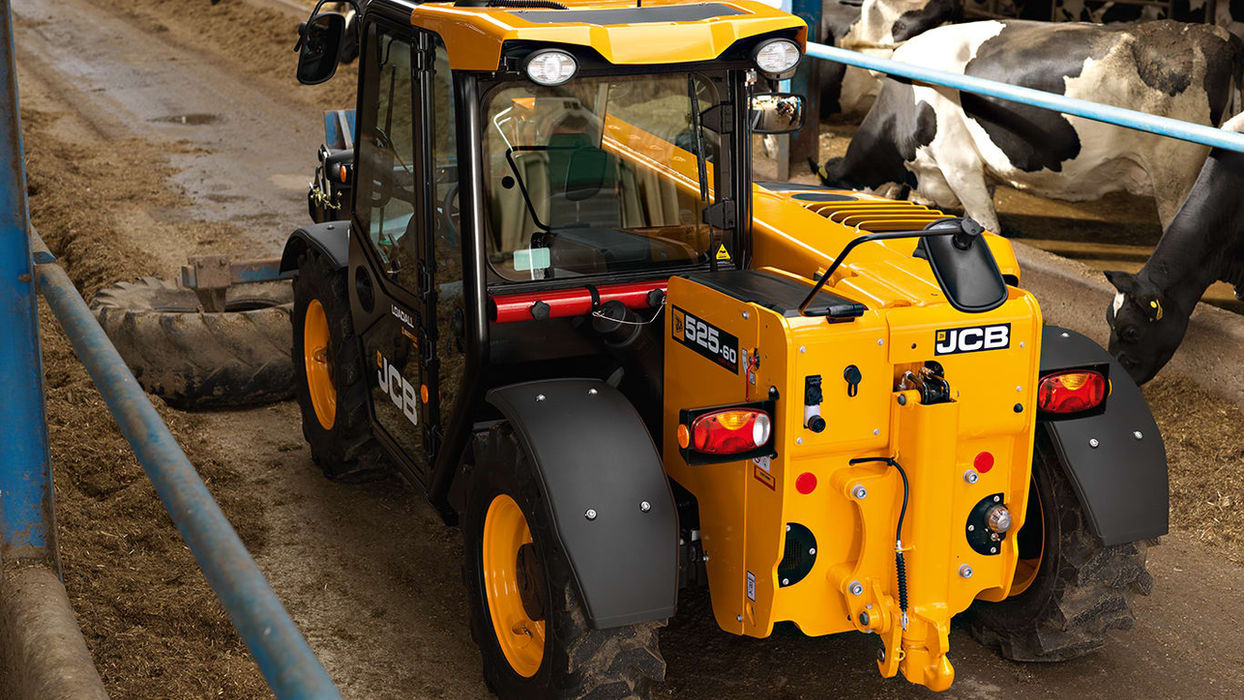

JCB 525-60 AGRI Telehandler
The JCB 525-60 Agri is a compact, high-performance telehandler built for agricultural work. Powered by a 74 hp JCB Diesel engine, it delivers strong torque and efficiency without DEF or DPF.The JCB 525‑60 Agri is a compact, high-performance telehandler built for agricultural work. Powered by a 74 hp JCB Diesel engine, it delivers strong torque and efficiency without DEF or DPF.
Features
High Performance
2-speed transmission allows you to select high and low speeds. The low speed setting complies with building site speed regulations, while high speed is ideal for road travel.
A hydrostatic transmission makes it easy to maneuver with precision even in cramped spaces. The driveline works in parallel with the braking system too; a transmission dump on the foot brake offers superb multi-functioning and increased power during loading and re-handling.
A low height of 6 ft 2 inches and a narrow width of 6 ft enables this JCB telescopic handler to access the smallest of operating environments. With a compact wheelbase and large steering lock angles, a tight turning radius and superior maneuverability are assured.
4WD as standard.
Efficient Design
Equipped with a potent JCB Diesel by Kohler engine - which produces 220lb-ft of torque at just 1,500 rpm - and doesnt require DPF or DEF.
Because it produces peak levels of torque at revs as low as 1,500rpm, this engine can provide fuel-efficient matching of the transmission and hydraulics.
Most Tier 4 Final engines use a Diesel Particulate Filter (DPF) or SCR, requiring additional DEF fluid level maintenance – this JCB Diesel by Kohler engine doesn’t.
JCB’s new-look telescopic handler exterior isn’t purely cosmetic; the cooling fan airflow is now angled upwards, reducing time-consuming dust build-up.
Superb Comfort
This telescopic handler has all-new instruments and a hi-res TFT screen. Intuitively laid-out control switches are backlit for optimum night recognition. You can also choose from a variety of seating options to suit all operators and applications.
So that you can tailor your telescopic handler for any climate, you can choose from canopy or cab options. Air conditioning is available for all cabs, ensuring the perfect working environment.
Controlling a JCB 525-60 Agri Plus is comfortable, precise and smooth: there are single lever electro servo controls with proportional auxiliaries.
Safer Working
For added peace of mind, this telescopic handler’s cab is ROPS (Rollover Protection System) and FOPS (Falling Objects Protection System) certified, keeping its operator protected at all times.
All-around visibility is superb via the large sunroof, opening rear window, fold-back upper door, and compact JCB Diesel by Kohler engine unit with its low-level sloping hood. Rear visibility is class-leading thanks to our unique low profile rear chassis and boom.
Cab-mounted front and rear worklights provide great visibility. To make it even better (especially when loading at height in dark conditions), opt for our boom-mounted worklights.
JCB LiveLink’s telematic GPS tracking provides invaluable real-time location data on your telescopic handler. Geofencing alerts help to ensure your machine is only being used in your chosen areas.
