Overview
manufacturer
JCB
model
400T
type
Skid Steer
category
Compact Track Loader
horsepower
109 hp
Engine Type
4.4L Egine
Travel speed
18.5 km/h
Quick Specs:
Manufacturer: JCB
Model: 400T Compact Track Loader
Type: Skidsteer
Horsepower: 109
Engine: 4.4L engine
SAE Operating Weight: 12,544 lb
ROC: 3,994 lb
Loader Lift Breakout: 6,816 lb
Hinge Pin Point: 10' 3"
Travel Speed: 7.8 mph
Lift Path: Vertical

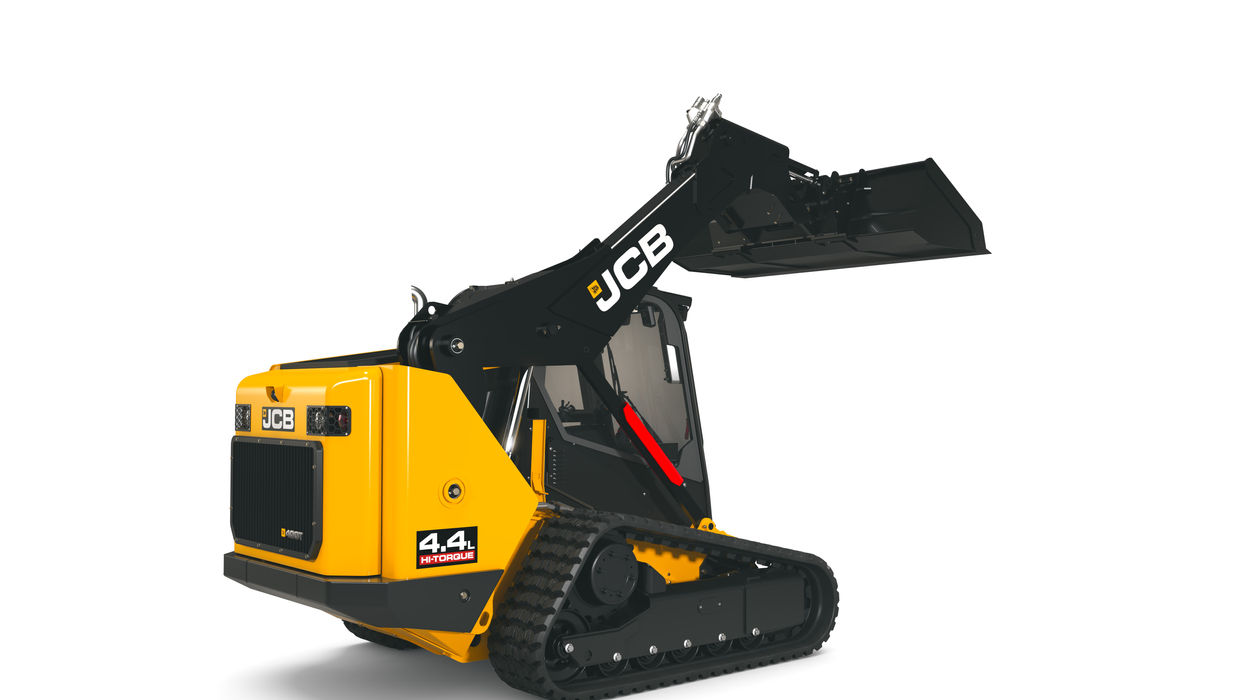

JCB 400T Compact Track Loader
Introducing the new JCB 400T — the most powerful compact track loader in JCB’s lineup yet. With 109 hp from a rugged 4.4-L engine, the 400T is built for heavy-duty work, delivering high torque and strong hydraulic flow to handle demanding attachments like drum mulchers and brush cutters.
Its vertical-lift, large-platform design includes a fully welded chassis, large Powerboom™ arm, and an expanded cooling system so you can stay productive under hard work.
Operator safety, comfort, and convenience are built in with side door entry, excellent all-around visibility, multiple hydraulic flow settings (including a high-flow option), and easy ground-level service access.
Features
Power & Performance
With plenty of power and versatile features, JCB sets new standards for efficiency and productivity in compact track loaders.
An industry standard quick hitch for quick coupling to all JCB attachments, as well as the ability for quick coupling to all other brands.
The standard hydraulic circuit on JCB’s large platform machines is 24 GPM. A high-flow option of 33 GPM is available as well as a maximum flow at 42 GPM.
JCB’s Smoothride System (SRS) option allows for improved load retention and faster loading cycles.
Strength & Durability
A fully welded chassis provides a rigid structure for maximum strength and reduced weight.
The single Powerboom contains 20% more steel for extra strength and vertical lift for maximum reach at height
The Powerboom TM provides safe internal routing for hydraulic hoses to give it maximum protection from impact.
A solid undercarriage provides consistent performance on demanding terrain.
For greater breakout force, JCB’s compact track loaders have the largest quick hitch pivots in the industry.
Safety
By adapting the technology from our world-leading telescopic handlers, we’ve given JCB compact track loaders the exclusive advantage of side entrance door.
No clambering over large, dangerous attachments just to get in the cab – just a safe, productive and common-sense design.
With a 270-degree view from the cab, our track loaders offer 60% more visibility than an ordinary model.
Laminated protective glass and no rear torque tube all add up to a safer, unobstructed drive.
Simple Service
JCB skid steer loaders are low-maintenance and easy to service, making them affordable, efficient and highly productive.
All daily checks can be performed at ground level.
Pre-filters, oil and air filters are easy to access via a large, recessed, rear service door.
JCB's tilting cabs can be operated by one person and opened in just a few minutes.
O-ring face seal hydraulic fittings reduce leaks and maintenance downtime.
Comfort & Control
With easy side-door entry, spacious cab environment, electric controls and adjustable joystick controls, JCB skid steer loaders offer unrivalled comfort for maximum productivity.
JCB’s MyChoice control software allows operators to tailor the sensitivity for both joysticks to match the way they work.
ISO- or H-pattern controls are available to suit operator preferences.
The updated cab was designed with ease of use and operator comfort in mind. The new touch screen display is mounted in the top right-hand sides of the cab which will allow the operator to change settings much faster. You can customize the control area as well as set MyChoice controls, reversing fan intervals, toggle the new job timer and more all from the touch display.
