Overview
manufacturer
JCB
model
3TS-8T
type
Teleskid
category
Compact Track Loader
horsepower
74 hp
Engine Type
JCB ecoMAX
Travel speed
19 km/h
Quick Specs:
Manufacturer: JCB
Model: 3TS-8T
Type: Teleskid
Horsepower: 74
Engine: JCB ecoMAX engine
SAE Operating Weight: 12,615 lbs Loader Life Breakout: 2,798 lb - 4,660 lb
ROC: 3,695 lbs
Hinge Pin Height: 13' 3"
Travel Speed: 7.8 mph
Lift Path: Vertical/Radial

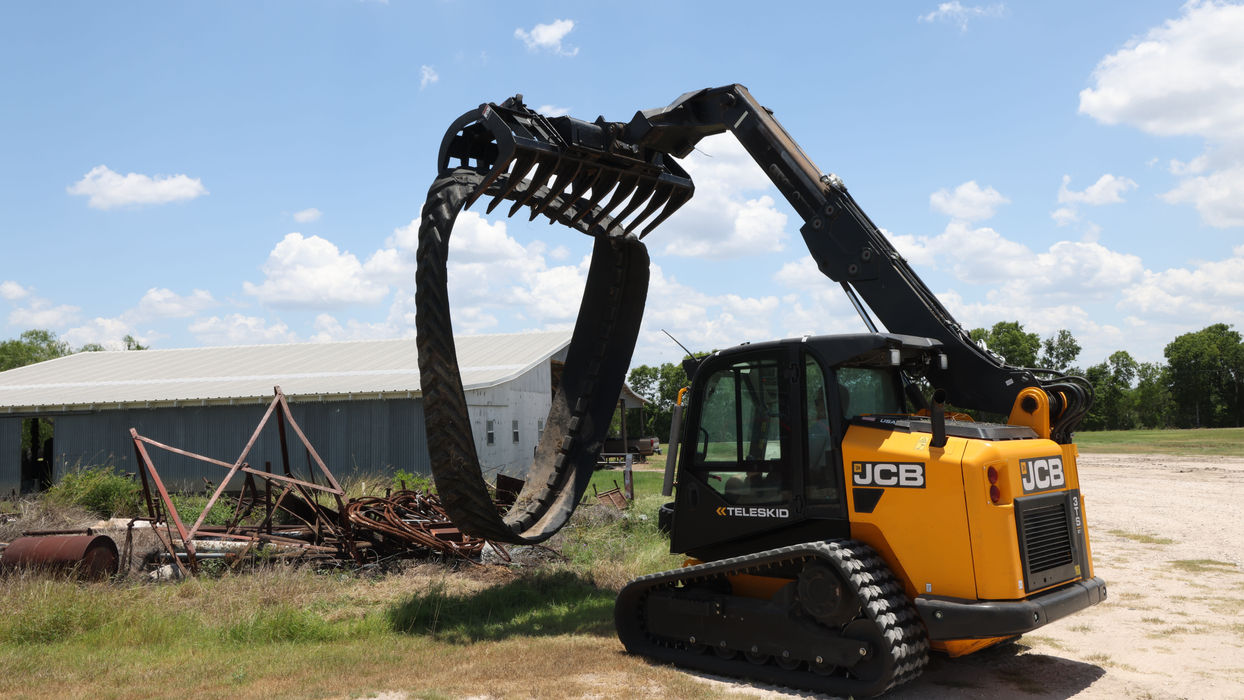

JCB 3TS-8T Teleskid Compact Track Loader
Powered by a 74 hp JCB EcoMAX engine, it offers robust performance without the need for a diesel particulate filter (DPF), ensuring efficient operation. With a rated operating capacity of 3,695 lbs when the boom is retracted and 1,600 lbs when fully extended, the 3TS-8T excels in tasks ranging from material handling to excavation.Designed with operator comfort and safety in mind, it features a spacious cab that's 33% larger than the industry average, a side-entry door for easy access, and advanced controls for precise operation.
Features
Productivity
The versatility of a skid steer or compact track loader combined with the telescopic JCB Powerboom and SAE/ISO standard quick hitch, for and unbeatable combination of productivity and efficiency.
Perform jobs like loading and unloading a trailer from a single side, increasing turnaround time.
JCB’s EcoMAX engine gives increased performance at low engine speeds. This results in improved cycle times while having greater tractive force than a small telehandler or forklift, meaning greater pushing power.
Impressive breakout force lets you do the work of bigger machines in less time.
No DPF means no regeneration and loss of production.
Safety
A standard electronic quick hitch with a fully enclosed tilt cylinder provides less material build up and better load visibility.
Optional dealer fit flashing beacon and front screen guard provide further safety and security.
Comfort & Control
JCB is the only manufacturer that offers a side entry compact track loader with the obvious accompanying safety benefits.
A 33% larger-than-average cab puts it in a class of its own with improved ergonomics and operator comfort.
A fully adjustable heated air suspension seat provides superb operator comfort whilst low effort electro-hydraulic controls make operating a Teleskid easy.
The updated cab was designed with ease of use and operator comfort in mind. The new 7” touchscreen display is mounted in the top right-hand side of the cab. With this customized control area, the operator can now change settings much faster with the opportunity to set MyChoice controls, reversing fan intervals, toggle the new job timer, view the reversing camera and much more.
Versatility
JCB’s Teleskid combines the advantage of vertical lift – for greater lift capacity and lift height – and radial lift – for improved excavating and grading – in a single machine.
The JCB Teleskid is the only compact track loader with a vertical reach of over 13 feet and a forward reach of over 8 feet.
Its reach extends over 3 feet below ground to provide the operator the ability to rip out trees and roots.
JCB’s 3TS-8T Teleskid has a rated operating capacity of 3,695 lbs. retracted and 1,600 lbs. extended; this enables heavy items to be placed without damaging the ground.
A standard hydraulic flow rate of 24 GPM allows you to operate attachments when fully extended. Optional 33 GPM high flow couplers allow safe operation of high flow attachments when the boom is fully retracted.
Strength & Stability
With a proven high-strength steel boom mounted on a single-piece, fully-welded chassis paired with reliable components, the JCB Teleskid has been constructed to maximize strength, durability and reliability.
The JCB telescopic boom as a proven track record on over 20,000 skid steer and compact track loader machines and has been put through an extreme testing program over thousands of cycles.
It has reduced joins and stress points in its single-piece U-pressed design.
Centralized lift and extension rams evenly distribute load stresses while a recessed rear door gives increased protection from damage.
